Polls a certain channel of a device for the current input state. If the return value is True , the container stored in res is just like an input event message, otherwise no state was available.

See also

Input Events .

Parameters:

askdevice ( int ) –

The device to ask. One of the following types:

BFM_INPUT_MOUSE	Mouse
BFM_INPUT_KEYBOARD	Keyboard

res ( c4d.BaseContainer ) – The result is stored in this container.

Return type:

bool

Returns:

True if the event could be retrieved, otherwise False .

c4d.gui. MessageDialog ( text [ , type=GEMB_OK ] ) ¶

Display a message dialog with the string as the message:

from c4d import gui
gui.MessageDialog("Why do you take baths in milk?'\n'I can't find a cow tall enough for a shower.")

Parameters:

text ( str ) – The string to print out.

type ( int. ) –

The values are:

GEMB_OK	OK.
GEMB_OKCANCEL	OK and Cancel.
GEMB_ABORTRETRYIGNORE	Abort, Retry and Ignore.
GEMB_YESNOCANCEL	Yes, No and Cancel.
GEMB_YESNO	Yes and No.
GEMB_RETRYCANCEL	Retry and Cancel.

Return type:

int

Returns:

Result from the message box. The value for this are:

GEMB_R_OK	OK button.
GEMB_R_CANCEL	Cancel button.
GEMB_R_ABORT	Abort button.
GEMB_R_RETRY	Retry button.
GEMB_R_IGNORE	Ignore button.
GEMB_R_YES	Yes button.
GEMB_R_NO	No button.

c4d.gui. QuestionDialog ( text ) ¶

Opens a standard question dialog with a question mark icon and Yes/No buttons. The text is specified as a string:

from c4d import gui
rvalue = gui.QuestionDialog("Do you think I am a dialog?")

Parameters:	text ( str ) – The string to show.
Return type:	bool
Returns:	True if the user answered Yes, otherwise False .

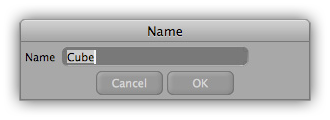

c4d.gui. RenameDialog ( text ) ¶

Opens a standard rename dialog:

from c4d import gui
name = op.GetName()             # Get the name of the active object
rvalue = gui.RenameDialog(name) # Pass it for rename
print rvalue                    # Returns None if the user aborts the dialog

Parameters:	text ( str ) – The string with the name to change.
Return type:	str
Returns:	The changed string on success, otherwise None if the user canceled the dialog.

c4d.gui. InputDialog ( text [ , preset ] ) ¶

Opens an input dialog which returns the input string.

Return text:	The label string.
Return preset:	The default value which will be written on popup.
Return type:	str
Returns:	The input as string.

c4d.gui. ColorDialog ( flags [ , col = c4d.Vector() ] ) ¶

Opens a color chooser dialog for the user to select a color. The look of this dialog depends on the operating system.

Parameters:	flags ( int ) – Flags. col ( c4d.Vector ) – New in version R19.024. The default color.
Return type:	c4d.Vector
Returns:	A `Vector` on success, otherwise None if the user canceled the dialog.

c4d.gui. FontDialog ( ) ¶

Opens a font chooser dialog for the user to select a font. The look of this dialog depends on the operating system.

Return type:	c4d.BaseContainer
Returns:	A `BaseContainer` with the font settings, otherwise None

c4d.gui. SelectionListDialog ( arr, doc[, x][, y] ) ¶

Shows a popup menu with of the given object tuple and lets the user choose an object at the position of the mouse.

Parameters:	arr (list of type `BaseObject` ) – A list of BaseObjects. doc ( c4d.documents.BaseDocument ) – The document. x ( int ) – X-Coordinate y ( int ) – Y-Coordinate
Return type:	int
Returns:	The user choice, or NOTOK if nothing was selected.

c4d.gui. ShowPopupDialog ( cd , bc , x , y , flags=POPUP_RIGHT|POPUP_EXECUTECOMMANDS ) ¶

Displays a popup menu dialog. The menu is defined by adding string items sequentially to a BaseContainer . (i.e. the order the items are set in the container determines their order in the menu.) The ID of the string item determines its function.

Here is a complete example of the features:

import c4d
from c4d import gui
# Declare menu items ID
IDM_MENU1 = c4d.FIRST_POPUP_ID
IDM_MENU2 = c4d.FIRST_POPUP_ID+1
IDM_MENU3 = c4d.FIRST_POPUP_ID+2
IDM_MENU4 = c4d.FIRST_POPUP_ID+3
IDM_SUBMENU1 = c4d.FIRST_POPUP_ID+10
IDM_SUBMENU2 = c4d.FIRST_POPUP_ID+11
# Main menu
menu = c4d.BaseContainer()
menu.InsData(IDM_MENU1, 'Item 1')
menu.InsData(IDM_MENU2, 'Item 2')
menu.InsData(0, '')                # Append separator
# Sub menu
submenu = c4d.BaseContainer()
submenu.InsData(1, 'Item 3')                   # Set submenu title
submenu.InsData(IDM_SUBMENU1, 'SubItem 1')
submenu.InsData(IDM_SUBMENU2, 'SubItem 2&c&')  # Check this subitem
menu.SetContainer(IDM_MENU3, submenu)          # Set submenu as subcontainer
menu.InsData(0, '')                            # Append separator
# Add another item to the menu
menu.InsData(IDM_MENU4, 'Item 4&d&')  # Disable this item
# Finally show popup dialog
result = gui.ShowPopupDialog(cd=None, bc=menu, x=300, y=300)
print result

A string with ID=0 gives a separator:

menu.InsData(0, ”)
A string with ID=1 sets the name of the menu (used for submenus):

submenu.SetString(1, ‘Text’)
IDs in the range 1000 to 899999 inserts a Cinema 4D command:

menu.SetString(c4d.IDM_COPY, ‘Copy’) menu.SetString(c4d.IDM_PASTE, ‘Paste’)

For a list of IDs, see the c4d_symbols.h file. A special case is the c4d.IDM_CM_CLOSEWINDOW ID that will close the current dialog.

The same applies to plugin IDs of plugins that have a menu entry (everything above 1000000):

menu.SetString(pluginid, ‘Text’)
The IDs that are left, between 900000 ( c4d.FIRST_POPUP_ID ) and 999999, can be used for your own menu items:

ID_MENU1 = c4d.FIRST_POPUP_ID ID_MENU2 = c4d.FIRST_POPUP_ID+1 ID_MENU3 = c4d.FIRST_POPUP_ID+2

Parameters:

cd ( c4d.gui.GeDialog ) – The parent dialog.
bc ( c4d.BaseContainer ) – The container with the elements. The elements have to be strings. You can optionally set a title with the ID 0 or just start with the first element with the ID c4d.FIRST_POPUP_ID . If you set a title, we recommend to add the string ‘&d&’ to the name of the title (see example) to grey it out. The title cannot be selected, even if its not greyed out.
x ( int ) – Popup X position in screen pixels, or c4d.MOUSEPOS to popup where the cursor is.
y ( int ) – Popup Y position in screen pixels, or c4d.MOUSEPOS to popup where the cursor is.

flags ( int ) –

One of the following flags:

POPUP_ABOVE	Open above mouse.
POPUP_BELOW	Open below mouse.
POPUP_CENTERVERT	Open centered vertically around mouse.
POPUP_LEFT	Open to the left of the mouse.
POPUP_RIGHT	Open to the right of the mouse.
POPUP_CENTERHORIZ	Open centered horizontally around mouse.
POPUP_EXECUTECOMMANDS	Execute commands immediatly.
POPUP_ALLOWUNDOCK	Allow to undock popupmenu.
POPUP_ALLOWUNDOCK_REC	Allow to undock popupmenu for children.

Return type:

int

Returns:

The ID of the selected item, or 0 if nothing was selected.

c4d.gui. GeUpdateUI ( ) ¶: Private.

c4d.gui. SetMousePointer ( l ) ¶

Sets the type of mouse pointer.

Parameters:

l ( int ) –

Values for the mouse pointer image:

MOUSE_HIDE	Hide cursor.
MOUSE_SHOW	Show cursor.
MOUSE_NORMAL	Normal cursor.
MOUSE_BUSY	Busy cursor.
MOUSE_CROSS	Cross cursor.
MOUSE_QUESTION	Question cursor
MOUSE_ZOOM_IN	Zoom in cursor.
MOUSE_ZOOM_OUT	Zoom out cursor.
MOUSE_FORBIDDEN	Forbidden cursor.
MOUSE_DELETE	Delete cursor.
MOUSE_COPY	Copy cursor.
MOUSE_INSERTCOPY	Insert copy cursor.
MOUSE_INSERTCOPYDOWN	Insert copy down cursor.
MOUSE_MOVE	Move cursor.
MOUSE_INSERTMOVE	Insert move cursor.
MOUSE_INSERTMOVEDOWN	Insert move cursor.
MOUSE_ARROW_H	Horizontal cursor.
MOUSE_ARROW_V	Vertical cursor.
MOUSE_ARROW_HV	Horizontal and vertical arrow cursor.
MOUSE_POINT_HAND	Point hand cursor.
MOUSE_MOVE_HAND	Move hand cursor.
MOUSE_IBEAM	I-beam cursor.
MOUSE_SELECT_LIVE	Live selection cursor.
MOUSE_SELECT_FREE	Free selection cursor.
MOUSE_SELECT_RECT	Rectangle selection cursor.
MOUSE_SELECT_POLY	Polygon selection cursor.
MOUSE_SPLINETOOLS	Spline tools cursor.
MOUSE_EXTRUDE	Extrude cursor.
MOUSE_NORMALMOVE	Normal move cursor.
MOUSE_ADDPOINTS	Add points cursor.
MOUSE_ADDPOLYGONS	Add polygons cursor.
MOUSE_BRIDGE	Bridge cursor.
MOUSE_MIRROR	Mirror cursor.
MOUSE_PAINTMOVE	Paint move cursor.
MOUSE_PAINTSELECTRECT	Paint select rectangle cursor.
MOUSE_PAINTSELECTCIRCLE	Paint select circle cursor.
MOUSE_PAINTSELECTPOLY	Paint select polygon cursor.
MOUSE_PAINTSELECTFREE	Paint select free cursor.
MOUSE_PAINTMAGICWAND	Paint magic wand cursor.
MOUSE_PAINTCOLORRANGE	Paint color range cursor.
MOUSE_PAINTFILL	Paint fill cursor.
MOUSE_PAINTPICK	Paint pick cursor.
MOUSE_PAINTBRUSH	Paint brush cursor.
MOUSE_PAINTCLONE	Paint clone cursor.
MOUSE_PAINTTEXT	Paint text cursor.
MOUSE_PAINTCROP	Paint crop cursor.
MOUSE_PAINTLINE	Paint line cursor.
MOUSE_PAINTPOLYSHAPE	Paint polygon shape cursor.

c4d.gui. GetShortcutCount ( ) ¶

Gets the global shortcut count.

Return type:	int
Returns:	Number of shortcuts.

c4d.gui. Shortcut2String ( shortqual , shortkey ) ¶

Converts a shortcut to a readable string.

Parameters:	shortqual ( int ) – Qualifier. shortkey ( int ) – Key.
Return type:	str
Returns:	Shortcut string.

c4d.gui. AddShortcut ( bc ) ¶

Adds the shortcut in bc to the shortcut list.

Parameters:

bc ( c4d.BaseContainer ) –

Shortcut to add. These are the IDs:

SHORTCUT_PLUGINID	int	Command ID.
SHORTCUT_ADDRESS	int	Manager ID.
ShortcutQualifier	int	The qualifier is stored under ID 0 + n*10 , where n is 0 for single shortcuts and 0, 1, … for shortcuts with multiple keys.
ShortcutKey	int	The shortcut key is stored under ID 1 + n*10 .

Return type:

bool

Returns:

True if successful, otherwise False .

c4d.gui. RemoveShortcut ( index ) ¶

Removes the shortcut at index .

Parameters:	index ( int ) – Shortcut index, 0<=index< `GetShortcutCount()`
Return type:	bool
Returns:	True if successful, otherwise False .

c4d.gui. LoadShortcutSet ( fn , add ) ¶

Loads shortcuts from fn .

Parameters:	fn (str or `MemoryFileStruct` ) – File with shortcuts to load. add ( bool ) – Add the shortcuts, instead of replacing.
Return type:	bool
Returns:	True if successful, otherwise False .

c4d.gui. SaveShortcutSet ( fn ) ¶

Saves shortcuts to fn .

Parameters:	fn (str or `MemoryFileStruct` ) – File to save the shortcuts to.
Return type:	bool
Returns:	True if successful, otherwise False .

c4d.gui. GetMenuResource ( menuname ) ¶

Gets the menu container of a main menu.

Parameters: menuname ( str ) – Main menu name, e.g. “M_EDITOR” (the same name as on disk or that you can see in the menu editor).

Return type: c4d.BaseContainer

Returns:

The menu container:

MENURESOURCE_SUBMENU BaseContainer Sub menu.

MENURESOURCE_SEPERATOR bool True if this is a separator.

MENURESOURCE_COMMAND str Command, e.g. “IDM_NEU” or “PLUGIN_CMD_1000472”.

MENURESOURCE_SUBTITLE str The title of the menu item or sub menu.

MENURESOURCE_STRING BaseContainer Menu item.

MENURESOURCE_SEPERATOR bool True if this is a separator.

MENURESOURCE_COMMAND str Command, e.g. “IDM_NEU” or “PLUGIN_CMD_1000472”.

MENURESOURCE_SUBTITLE str The title of the menu item or sub menu.

MENURESOURCE_MENURESOURCE BaseContainer Menu resource.

c4d.gui. SearchMenuResource ( bc , searchstr ) ¶

Searches a menu container for a certain plugin command (which is a string identifier, for example “PLUGIN_CMD_1000472” ).

Parameters:	bc ( c4d.BaseContainer ) – Menu container to search. searchstr ( str ) – Search string.
Return type:	bool
Returns:	True if the command was found, otherwise False .

c4d.gui. SearchPluginMenuResource ( [ identifier=”IDS_EDITOR_PLUGINS” ] ) ¶

Searches for the ‘Plugins’ main category in ‘M_EDITOR’.

Parameters: identifier ( str ) – The resource identifier.

Return type: ptr

Returns:

Parameters:	identifier ( str ) – The resource identifier.
Return type:	ptr
Returns:	The found menu container, or None . Note To get the actual menu container use `c4d.Cast()` : res = gui.SearchPluginMenuResource() bc = c4d.Cast(None, res)

The found menu container, or None .

Note

To get the actual menu container use c4d.Cast() :

res = gui.SearchPluginMenuResource()
bc = c4d.Cast(None, res)

c4d.gui. SearchPluginSubMenuResource ( [identifier=”IDS_EDITOR_PLUGINS”][, bc=None] ) ¶

Searches for the “Plugins” main category in “M_EDITOR” or optionally a submenu specified by bc .

Parameters:

Parameters:	identifier ( str ) – The resource identifier. bc ( c4d.BaseContainer ) – Submenu container.
Return type:	ptr
Returns:	The found menu container, or None . Note To get the actual menu container use `c4d.Cast()` : res = gui.SearchPluginMenuResource() bc = c4d.Cast(None, res)

identifier ( str ) – The resource identifier.
bc ( c4d.BaseContainer ) – Submenu container.

Return type:

ptr

Returns:

The found menu container, or None .

Note

To get the actual menu container use c4d.Cast() :

res = gui.SearchPluginMenuResource()
bc = c4d.Cast(None, res)

c4d.gui. UpdateMenus ( ) ¶: Forces a menu update.

c4d.gui. GetInterfaceIcon ( type , id_x , id_y , id_w , id_h ) ¶

New in version R14.014.

Returns the icon for an interface element.

Parameters:

type ( int ) –

Flags:

INTERFACE_ICON_TYPE_NORMAL	Icon - normal.
INTERFACE_ICON_TYPE_DISABLED	Icon - disabled.
INTERFACE_ICON_TYPE_FOCUS	Icon - focus.

id_x ( int ) – The X position ID of the icon.
id_y ( int ) – The Y position ID of the icon.
id_w ( int ) – The width ID of the icon.
id_h ( int ) – The height ID of the icon.

Return type:

dict{ bmp : BaseBitmap , flags : int, w : int, h : int, x : int, y : int}

Returns:

The icon ressource data, or None if an error occured.

c4d.gui. RegisterIcon ( lIconID, pBmp[, x=0][, y=0][, w=-1][, h=-1] ) ¶

Registers an icon from a bitmap. Optionally a sub-icon can be specified within an larger image by giving a rectangle from ( x , y ) to ( x+w , y+h ). If no rectangle is specified the whole bitmap is used. The bitmap is internally copied.

Parameters:	lIconID ( int ) – A unique plugin ID. You must obtain this from PluginCafe.com pBmp ( c4d.bitmaps.BaseBitmap ) – The bitmap to use for the icon. Is internally copied. x ( int ) – Optional X coordinate of the top left corner of the sub-icon rectangle. y ( int ) – Optioanl Y coordinate of the top left corner of the sub-icon rectangle. w ( int ) – Optional width of the sub-icon rectangle. h ( int ) – Optional height of the sub-icon rectangle.
Return type:	bool
Returns:	True if the icon was registered, otherwise False .

c4d.gui. GetIcon ( lIconID ) ¶

Gets an icon registered with RegisterIcon() . Similar to InitResourceBitmap() :

import c4d
from c4d import gui
icon = gui.GetIcon(c4d.RESOURCEIMAGE_MOVE)
bmp = icon["bmp"]
x, y = icon["x"], icon["y"]

Parameters:	lIconID ( int ) – The ID of the icon. For a list of possible IDs check out `InitResourceBitmap()`
Return type:	dict{ bmp : `BaseBitmap` , x : int, y : int, w : int, h : int}
Returns:	The information about the icon data.

c4d.gui. UnregisterIcon ( lIconID ) ¶

Unregisters the icon with ID lIconID . Only unregister your own registered icons.

Parameters:	lIconID ( int ) – The ID of the icon.
Return type:	bool
Returns:	True if the icon was unregistered, otherwise False .

c4d.gui. GetShortcut ( index ) ¶

Gets the shortcut at index .

Parameters:	index ( int ) – Shortcut index, 0<=index< `GetShortcutCount`
Return type:	c4d.BaseContainer
Returns:	The retrieved shortcut.

c4d.gui. SizePixChr ( pixels , chars ) ¶

Combines the SizePix() and SizeChr() functions. The returned value is interpreted as a number of characters/lines plus a number of pixels.

Parameters:	pixels ( int ) – The pixel dimension. chars ( int ) – The number of characters.
Return type:	int
Param:	The size value.

c4d.gui. SizePix ( pixels ) ¶

Bakes a pixel size so that it can be used to specify dialog control dimension.

Parameters:	pixels ( int ) – The pixel dimension.
Return type:	int
Param:	The size value.

c4d.gui. SizeChr ( chars ) ¶

Bakes a character count so that it can be used to specify dialog control dimension. (How many characters that will fit in a control for widths, and how many standard lines that will fit for heights.)

Parameters:	chars ( int ) – The number of characters.
Return type:	int
Returns:	The size value.

c4d.gui. GeGetScreenDimensions ( x , y , whole_screen ) ¶

Returns the screen dimensions in pixels.

Parameters:

x ( int ) – Screen X coordinates to identify which display information is read (for multi-display setups).
y ( int ) – Screen Y coordinates to identify which display information is read (for multi-display setups).
whole_screen ( bool ) – True if dimensions of the whole screen (including taskbar etc.) are returned, otherwise False .

Return type:

dict{ sx1 : int, sy1 : int, sx2 : int, sy2 : int}

Returns:

A dictionary with the screen dimensions:

type sx1:	int
key sx1:	The minimum X coordinate (left).
type sy1:	int
key sy1:	The minimum Y coordinate (top).
type sx2:	int
key sx2:	The maximum X coordinate (right).
type sy2:	int
key sy2:	The maximum Y coordinate (bottom).

c4d.gui. ActiveObjectManager_SetObject ( id , op , flags [ , activepage=DescID() ] ) ¶

Sets the currently shown object op in the specified mode.

Note

You only need to use this if you have registered your own mode without a hook. Otherwise the managers will ask for new objects themselves, and listen for events when new objects are selected.

Parameters:

id ( int ) –

Mode ID:

ACTIVEOBJECTMODE_OBJECT	Object mode.
ACTIVEOBJECTMODE_TAG	Tag mode.
ACTIVEOBJECTMODE_MATERIAL	Material mode.
ACTIVEOBJECTMODE_SHADER	Shader mode.
ACTIVEOBJECTMODE_NODE	Node mode.
ACTIVEOBJECTMODE_TIMELINE	Time-line mode.
ACTIVEOBJECTMODE_FCURVE	F-curve mode.
ACTIVEOBJECTMODE_BITMAPINFO	BodyPaint bitmap info mode.
ACTIVEOBJECTMODE_TOOL	Tool mode.
ACTIVEOBJECTMODE_VIEW	View mode.
ACTIVEOBJECTMODE_INFOTAB	Info tab.
ACTIVEOBJECTMODE_CAMERA	Editor camera mode.
ACTIVEOBJECTMODE_RENDERDATA	Render data mode.
ACTIVEOBJECTMODE_DOCUMENT	Document settings mode.
ACTIVEOBJECTMODE_MODELING	Modeling mode.

op ( c4d.C4DAtom ) – Object to show.

flags ( int ) –

Flags:

ACTIVEOBJECTMANAGER_SETOBJECTS_OPEN	A new manager is opened if there’s no manager that accepts the given id, for example if the other managers are locked or have that mode disabled.
ACTIVEOBJECTMANAGER_SETOBJECTS_NOMODESWITCH	If the AM already shows the mode of the objects being set, it will switch to the new objects. If the AM has another mode the old mode and objects stay.

activepage ( c4d.DescID ) – The tab of the object’s description to be shown. Pass the descritpion ID of the tab here.

c4d.gui
- Types
- Functions

`c4d.gui` ¶

Types ¶

Functions ¶

Table Of Contents

Quick search

c4d.gui ¶

Types ¶

Functions ¶

Table Of Contents

Quick search

`c4d.gui` ¶
